Free shipping Original RT809H EMMC-Nand FLASH Extremely fast Universal Programmer +38 Items+Edid Cable WITH CABELS EMMC-Nand
1.1 What is RT809H?RT809H is a kind of cost-effective,reliable and fast universal programmer series,suitable for all the computers or laptops based on Pentium IV processors or the better processors.When working it can communicate with the USB2.0 fast port of computer directly,with driver program inside software,which makes installing operation more convenient.1.2 Programmer Characteristic:
Supporting Windows XP,Windows Vista,Windows 7,windows 8 and windows 10Do not need external power source,with low-power consumption,can be used as VGA signal generator,easy to repair.With Intellisense functionality,when reading and writing most types of chip off line, it support the function of intelligent identification and being put at will.Support 24/25/93/95 series serial SPI Flash. EEPROM offline read and write.Support 26/27/28/29/30/39/49/50 series NOR Flash/ PROM read and write;Support TSOP48/BGA footprint NAND Flash parameter automatic identification and offline reading;Support the mainstream device,including E/EPROM、MCU、EC、SPI NOR flash、parallel NOR flash、SPI NAND、parallel NAND、ONENAND、MCP、EMMC、EMCP,etc.
NAND_AUTOCan recognize most of the NAND and go on to read and write.EMMC_AUTOUsing BGA socket,supporting EMMC off-line fast read-writing(8bit main line)EMMC_AUTO_4BITUsing BGA socket,supporting EMMC off-line fast read-writing(4bit main line)EMMC_AUTO_ISPRead-write EMMC with flying line way.(1bit main line)Support the EMMC recognition in the on-line or off-line way,BOOT/USER/RPOM/GPP area read and write.
I2C/ serial port ISP has strong function,compatible with most of the LCD chip scheme,can check the printing information on line,read and write NOR/NAND/EMMC chip on line,read and write the EC chip of laptop on line or off line.Support the IT8/KB90/NPCE/NEC16 series of laptop mainboard’s EC chip to read and write.High-speed USB port,USB driver with WHQL certification,the reading and writing speed can be as much as 25 MB/S.Full driver structure,free software upgrade,the universal switch socket to reduce the using cost for the use1.3 Instruction TissueThis instruction consists of three parts:The part one is to introduce RT809H,including the system requirement,software and hardware installing,etc ;The part two is the detailed instruction of software commands and each function;The part three is appendix,including the user support and the wrong message.1.4 System Requirement
Minimum system configuration:Pentium IV and above compatibles,desktop or laptop computer,at least a universal serial main line port conform to USB2.0 high-speed standard.Windows XP/Vista operating system.The hard disk with at least 1G free space1.5 Programmer External Port Instruction
Front view : HMI is reserved man-machine port,also be used by the footprint chip of TSOP56,BGA64,etcDC lateral view : Except the USB outlet connected to the computer,there is a DC power supply outlet,9-12V power supply range(negative electrode outside and positive electrode inside),switching automatically between external power source and USB power supply.(Please use the power of good quality,or the programmer will may be damaged and no warranty.)

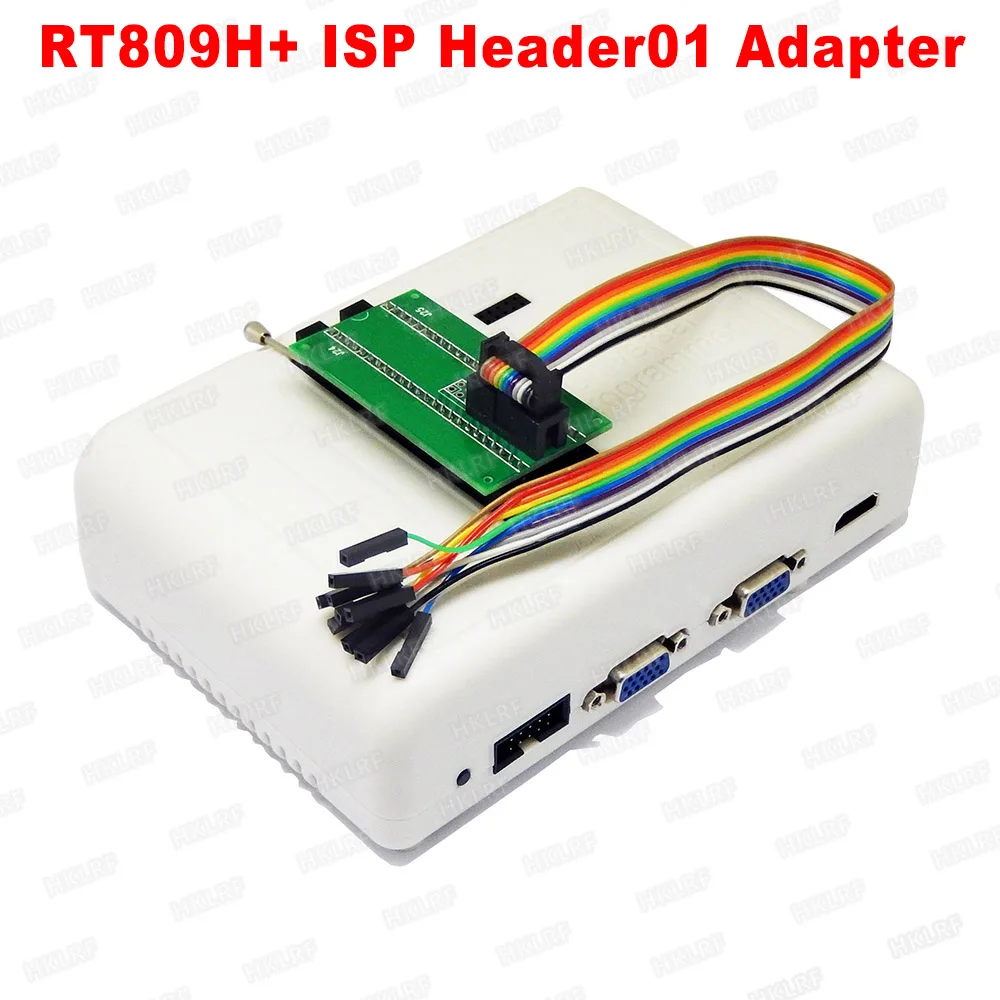

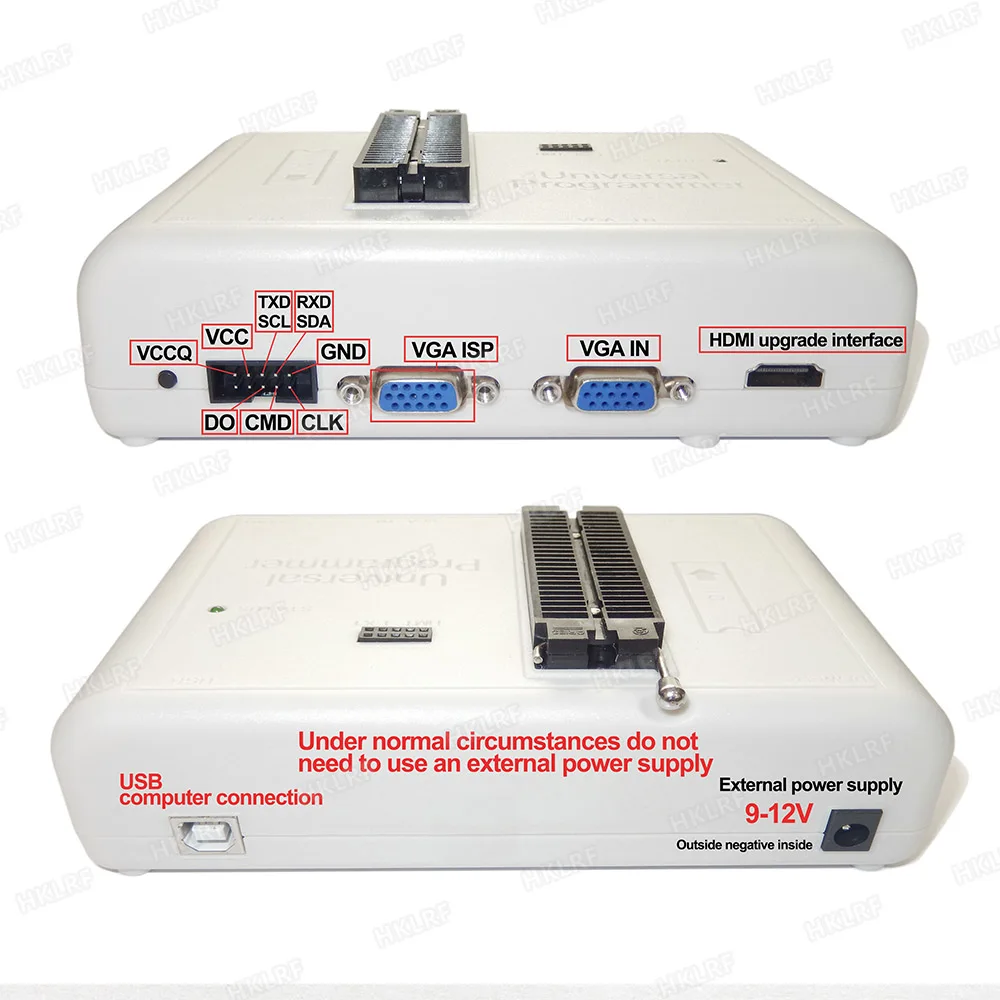

Flashing port lateral viewPort instruction:The leftmost button is the power button, also as the VGA signal switching button;The IDC10 black outlet at the middle is ISP port,the main function is ISP of all sorts of MCU and flying line to read and write EMMC,etc.Use the Dupont line to connect this port with the key signal of the board waiting for flashing, one to one correspondence connection.“VGA ISP”can be used as VGA signal output,be connected with the VGA port of the board when flashing.“VGA IN”is the VGA signal input,can be connected with the computer graphics.When unconnected,VGA ISP will output the VGA signal produced by itself;When connected,VGA ISP output the computer graphics signal;“HDMI Digital high-definition interface”can connect with the HMDI port of the flashing board.Full Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin Support CAR DVD, SMART TV.The Only universal programmer which can automatically detect chip number for all Chips.The only universal programmer which can put ic in any position and make intelligent sense.The Only universal programmer Support Read and program Laptop I/O via keyboard line.The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT.The Only universal programmer Support ADD new flash by yourself without wait for factory.The Only universal programmer built in Most of repair applications TV,DVD,DVB,and many isp software.The Only universal programmer make selftest for LCD TV itself and diagnostic fault.The best programmer to read and programing flash on motherboard without removing outSupport Read and Programming OTP area .Support UPTO 64GB NAND FLASHShort description:
-48-pins powerful pindrivers, no adapter required for any DIL devices
· ISP connector for in-circuit programming
· VGA port to read and write LCD TV-MONITORS without disassembly .
· HDMI port to read and write LCD TV-MONITORS without disassembly .
· Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface
· Comfortable and easy to use control program, works with all versions of MS Windows
· Can support any flash and very easy to add new flash .
· High programming speed.
· Advanced and powerful software functions.
· Online Technical Support is also available 24 hours .
· One Year warranty.
· Provides very competitive price coupled with excellent hardware design for reliable programming.
·the programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.
· The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.

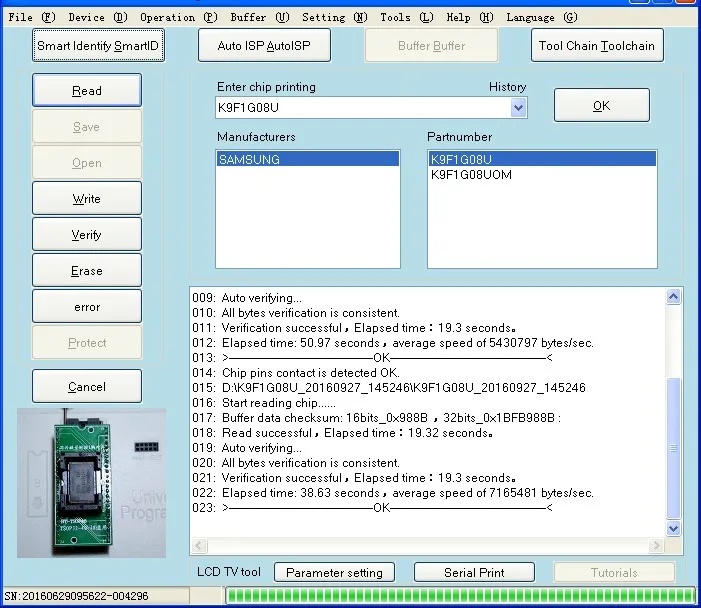

· Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
· All known data formats are supported. Automatic file format detection and conversion during loading of file.
· The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided

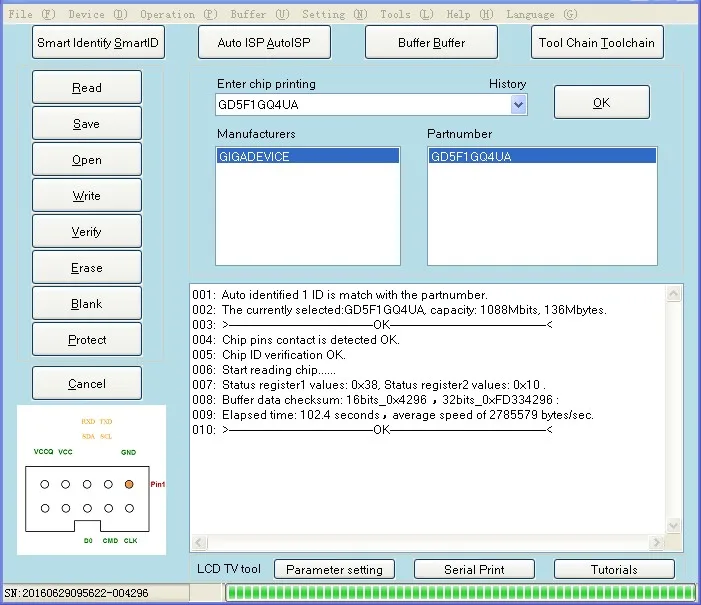

· The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

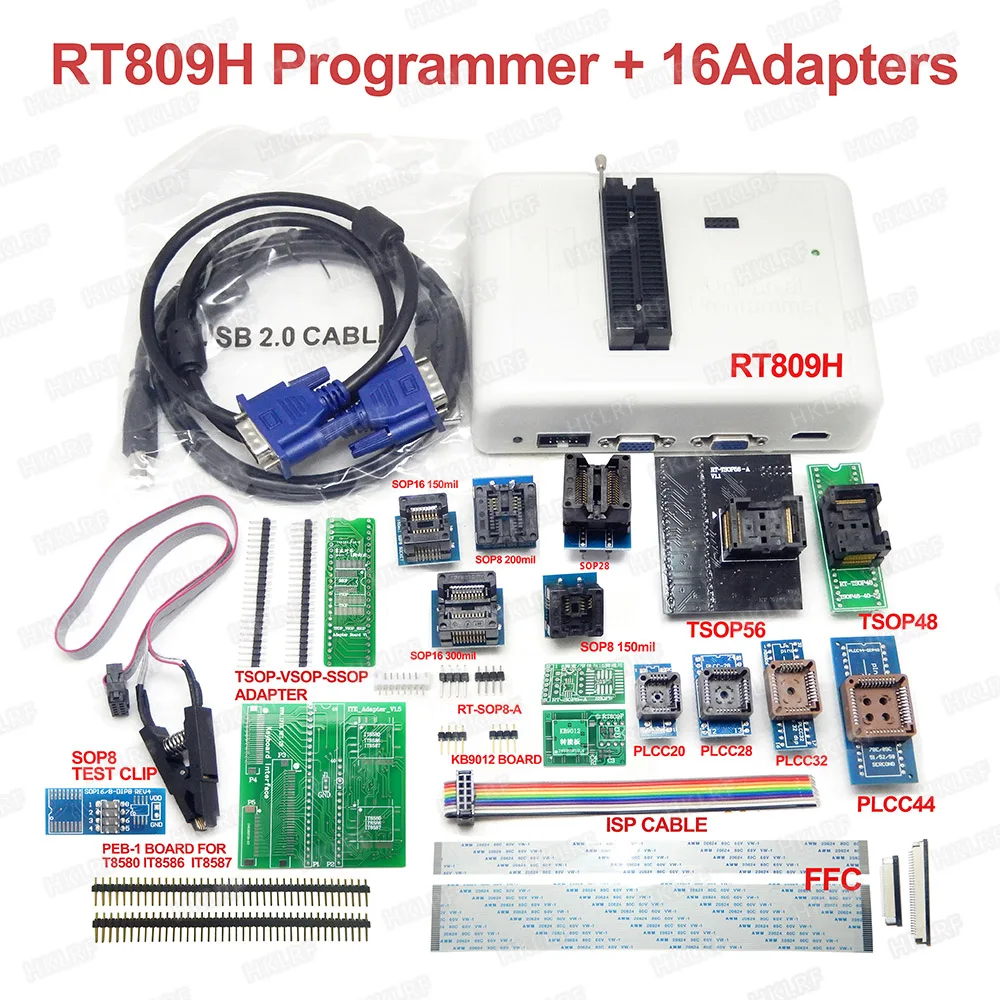

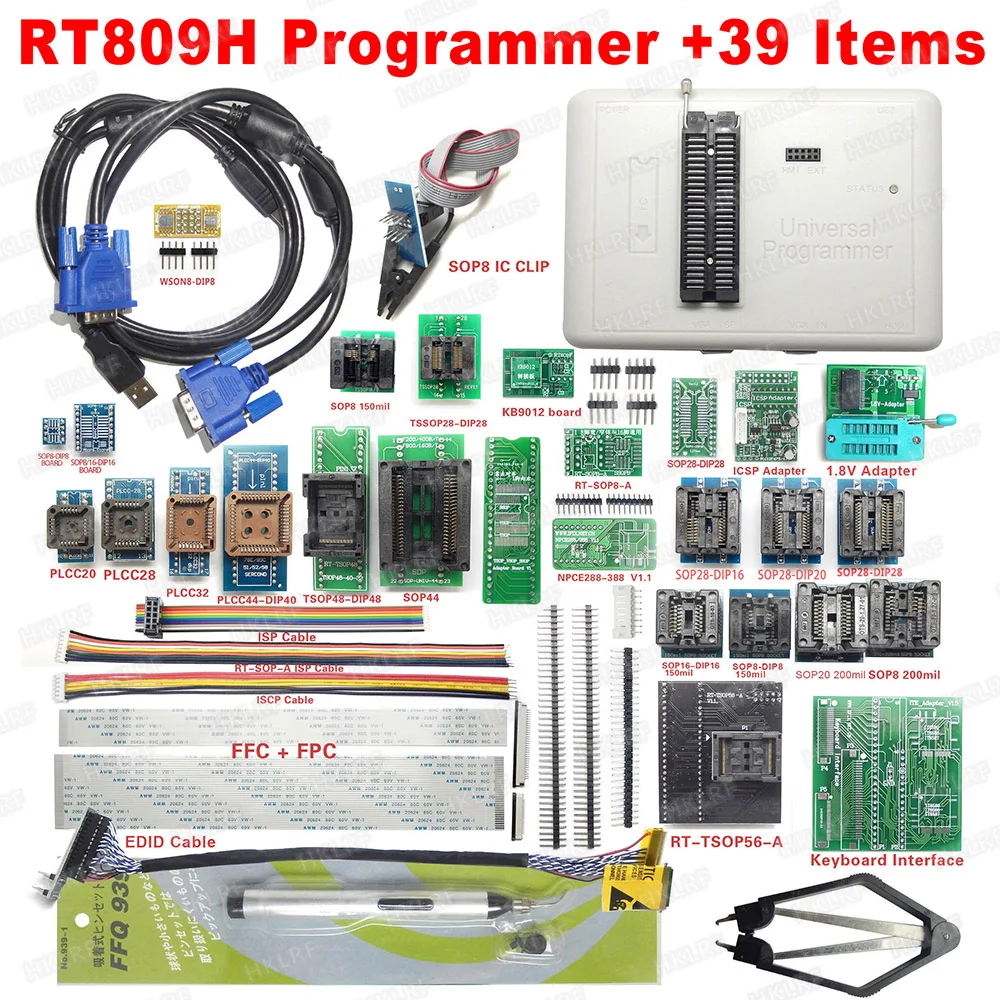

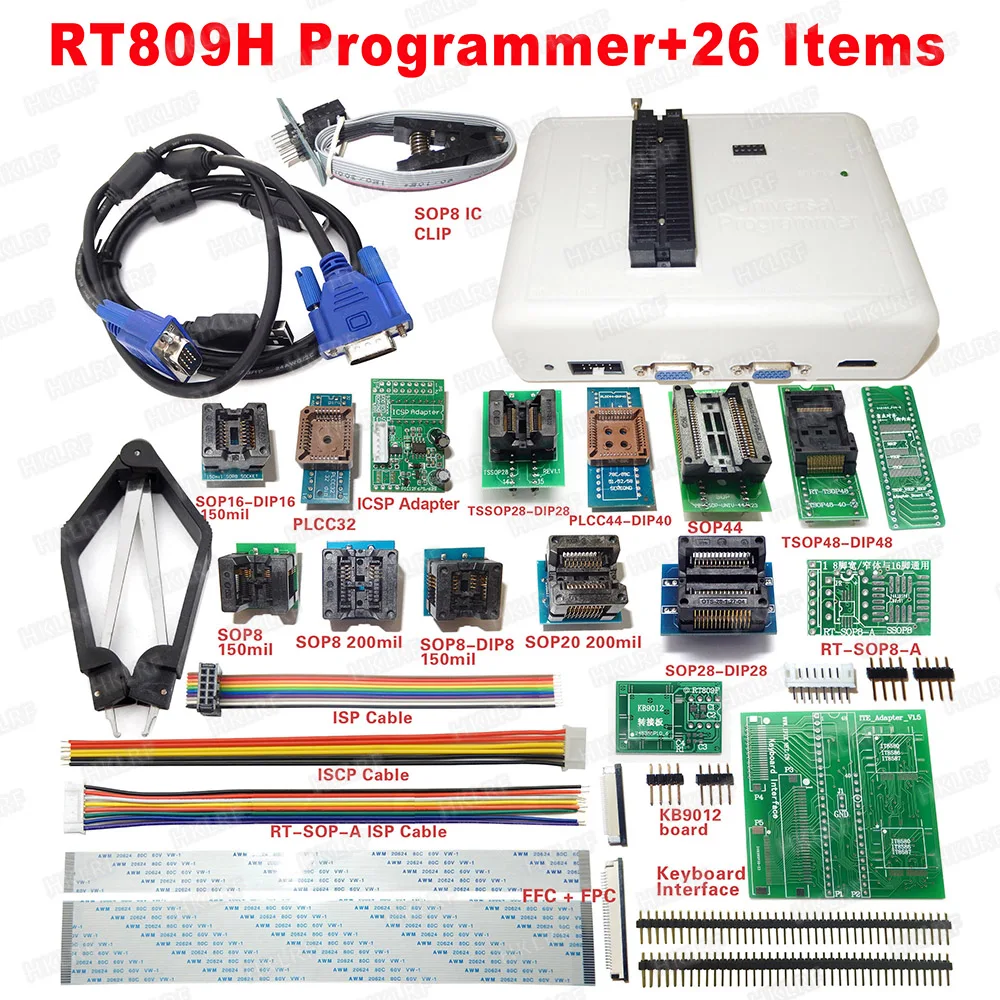

1 * RT809H universal programmer.1 * TSOP56 Adapter RT-TSOP56-A V1.11 * original TSOP48 nest1 * IC Chip Extractor.1 * usb cable.1 * vga cable.1 * sas past the nest.1 * SOIC8 - DIP8 adapter ZIF (205mil).1 * SOP8 - DIP8 adapter (~ 150 million).1 * SOP16 150 mill1 * SOP28 300 mill (also supports SOP20 SOP18 SOP16 300MIL).1 * PLCC44.1 * PLCC32.1 * PLCC28.1 * PLCC20.<1 * SOP44 in DIP441 * ISCP board with wire1 * SOP20 200MIL1 * SSOP28 to DIP281 * TSSOP8 in DIP81 * KB9012 board.1 * SOP8 clamp test.1 * TSOP - VSOP - SSOP adapter.2 * IT8587 IT8585E flat cable.1 * EC NPEC288 NPEC388 PCB Board. 1 * EC SOP28-DIP28 PCB Board.1 * SOP8/MSOP8/SSOP8/SOP16-DIP16 simple adaptador.1 * Adaptador SOP8-DIP8 simples.1 * ISP Cable.1 * ICSP Cable.1 * RT-SOP-A ISP Cable.1 * FFC Line 200MM 0.5mm-32P1 * FFC Line 200MM 1.0mm-32P1 * FPC Base Under 0.5mm-32P1 * FPC Base Under 1.0mm-32P1* 1.8V Adapter1*sop16 -dip16 adapter1*Edid Cable1*WSON8-DIP8 8x6mm 6x5mm
